Miniature Proportional Valve

$78.00

Select your specifications above to create a part number

Features

2-5 Millisecond Response Time
Unique Proportional Valve Design
Easily Cleaned and Maintained
Quiet Operation
Low Hysteresis Performance
Controls Air, Water, and Other Mediums

Purchasing Information

Covered by Manufacturer Warranty

Lead Time


1‐5 Units	5-10 Business Days
6 Units or More	Consult Sales

We offer discounts for orders of 25 units or more. Please contact our sales department for a quote.

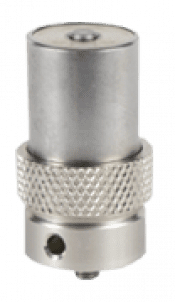

Kelly Pneumatics, offers a low volume flow Miniature Proportional Valve utilizing our unique proportional valve design. This non-spool valve architecture employs one moving part, ensuring virtually friction-less proportional control and longevity tested over 100 million cycles. The simplicity of the proportional valve design also ensures relative ease when implementing maintenance or cleaning. We also offer alternative versions that are resistant to both high and low temperatures, therefore performing consistently in many different environments. Available in both a 2-way and 3-way valve, this product can efficiently process Water, Air, Oil, and Hydrogen.

Specification Sheet (pdf)

3D PDF (pdf)

Import 3D Model (igs)

Specifications

Valve Function	2-Way, Normally Closed
Electrical Connection	Wire Leads or Terminal Spades
Working Pressure	-14.7 to 100 psig (6.8 bar) (standard) 500 psig (custom)
Flow Range	0-500 milliliters of water per minute, 0-32 liters per minute of air
Orifice Size	.009, .013, .025, .040, or .060 inches
Voltage Range	0-5, 0-10, and 0-20 VDC
Response Time	2 – 5 ms
Port Types	#10-32 Inline (Base Mount), 1/16″ Manifold Mount,
Seal Material	Buna-N, Viton, or EPDM
Operating Temp.	-40° to 200°F (-40° to 93°C)
Maximum Hysteresis	2-10% of full current (varies with max flow)
Leak Rate	Bubble Tight Seal
Type of Operation	Direct solenoid
Filtration	40 Micron Recommended
Weight	0.15 lbs
Wetted Materials	Cold rolled stainless steel w/ electroless nickel plating, brass and 304 stainless steel.
Power	1.8 watts (max)
Ports	See Dimensions Below
