Gas Flow Sensor

Features

  • High Accuracy of +-2% of reading (or 0.05 SLPM)
  • 2 Millisecond Response time
  • Linearized Analog Output
  • I2C Digital Communication to Read Flow or Temperature, and Change Preferred Settings
  • Temperature Compensating
  • Microcontroller Design for Customization

GasOutputP/NPriceDelivery Time
Air & OxygenI2CKPI-DMFS-1$190.005-10 Business Days

AirAnalogKPI-AMFS-1-A$190.004-5 Weeks

OxygenAnalogKPI-AMFS-1-X$190.004-5 Weeks

Kelly Pneumatics, Inc. offers a Gas Flow Sensor for high volume flow rates of Air and Oxygen. The sensor automatically compensates for temperature changes in the measured gas and outputs accurate readings of mass flow and temperature via I2C digital communication or an analog voltage.

The Gas Flow Sensor outputs flow for Air and Oxygen from 0-300 SLPM, with an accuracy of 2% of reading, and offers a flow sample response time of 2 milliseconds. An internal microprocessor measures signals from an internal thermistor and hot wire anemometer to linearize flow measurements, and allows for numerous settings for flow and temperature output readings. The compact, lightweight design is perfect for OEM applications, especially medical, semiconductor, and gas analyzer products.

Digital Communication

The unit has an internal microprocessor which can be used to dynamically change settings. Digital Commands allow switching between flow measurements in either Air or Oxygen, as well as reading the current gas temperature. I2C commands can also change the units of flow measurement between Standard Liters per Minute (SLPM) or Pound Mass per Minute (lb/min). These preferences can also be saved to internal EEPROM to avoid initialization on startup. Using a microcontroller also means custom software versions are available per your application’s requirements. For more details, see Application Note “I2C Details for KPI-DMFS-1” below.

Specifications

Supported Media Air and Oxygen
Flow Range 0 to 300 SLPM
Flow Accuracy 2% of reading or 0.05 SLPM, whichever is greater, at 70 °F and 14.7 psia
Flow Sample Rate 2 milliseconds
Temperature Measurement Range 0 to 50 °C (0 to 122 °F)
Temperature Measurement Accuracy ±1 °C (±1.8 °F) at flows >1 SLPM
Maximum Allowable Atm. Pressure 400 kPa (58.0 psia)
Port Sizes 19 MM Male (Standard), 3/8″ Female NPT (with adapter block/bracket)
Power Requirements 5 volts ±10% (0.785 Watts Max Power Consumption at 300 SLPM)
Operating Temperature 0 to 50 °C (0 to 122 °F)
Digital Interface 2-Wire I2C
I2C Default Address 64 (0x40)
I2C Bus Clock Frequency 400 kHz
Analog Output Signal 0.2 to VREF ( Output Signal is Ratiometric )
Analog Flow Rate Equivalence 0 – 300 SLPM ( Note: this can be customized for improved resolution )
Analog Voltage Reference (VREF) VDD – 5%
Analog Resolution 16 Bits

Pin Layout (Digital Output Version)

GasFlowSensorDigitalPinout

Pin Number1234
FunctionI2C DataGroundSupply Voltage I2C Clock
LabelSDAGNDVDDSCL

Pin Layout (Analog Output Version)

GasFlowSensorAnalogPinout2 (1)

Pin Number15689
FunctionAnalog Output SignalI2C ClockI2C DataSupply VoltageGround
LabelAOUTSCLSDAVDDGND

Dimensions

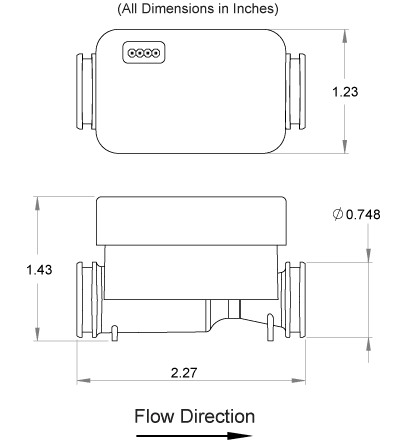

(All Dimensions in Inches)

DigitalMassFlowSensorDimensRev
